Intro
Welcome to Part 4 of the AVI/ALB GSLB Lab In the previous post, we created the DNS Virtual Services at each site.
In this post we’ll cover the GSLB Site Configuration.
DCA Configuration

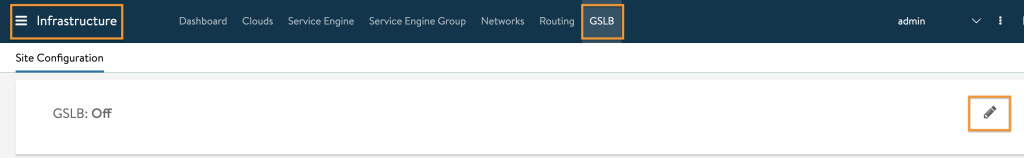

On the DC A Avi controller from the left menu select Infrastructure then GSLB now click the Pencil icon.
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site01.png?resize=648%2C100&ssl=1)

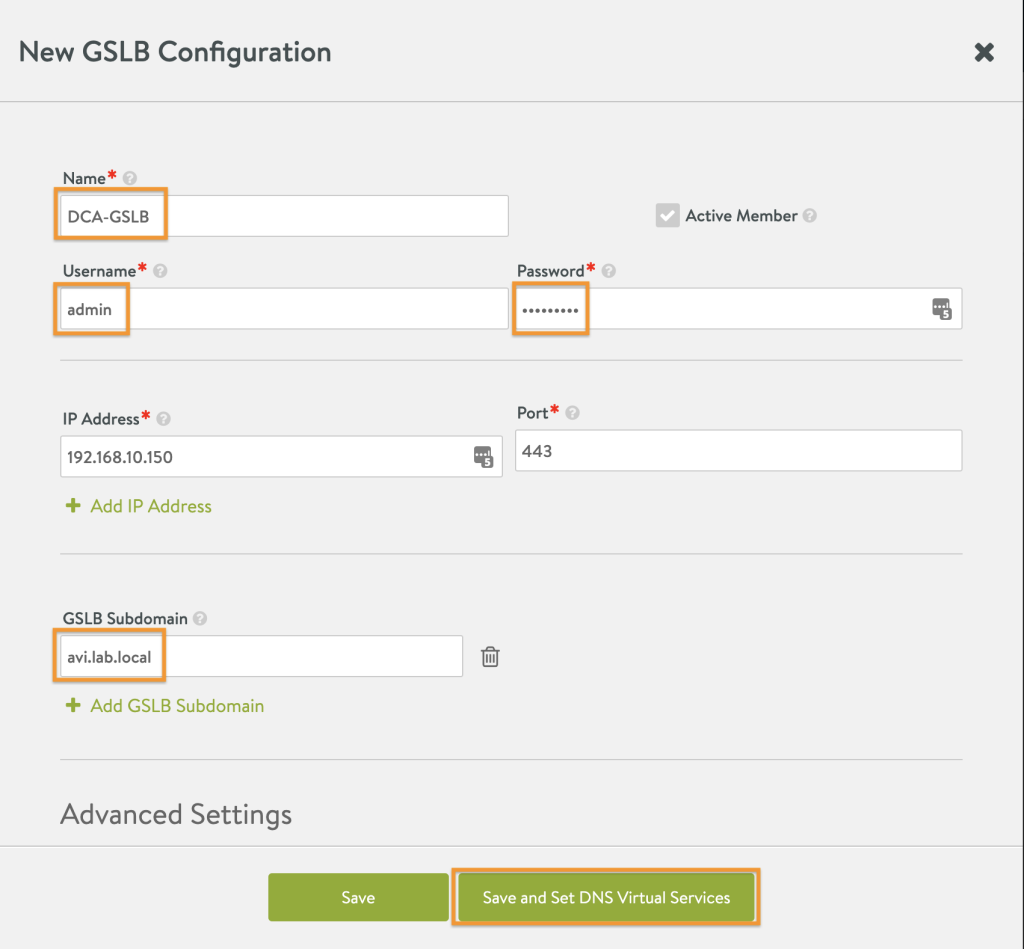

Enter a name, set the Username and Password and set the GSLB Subdomain avi.lab.local for me now click Save and Set DNS Virtual Services
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site02.png?resize=648%2C601&ssl=1)

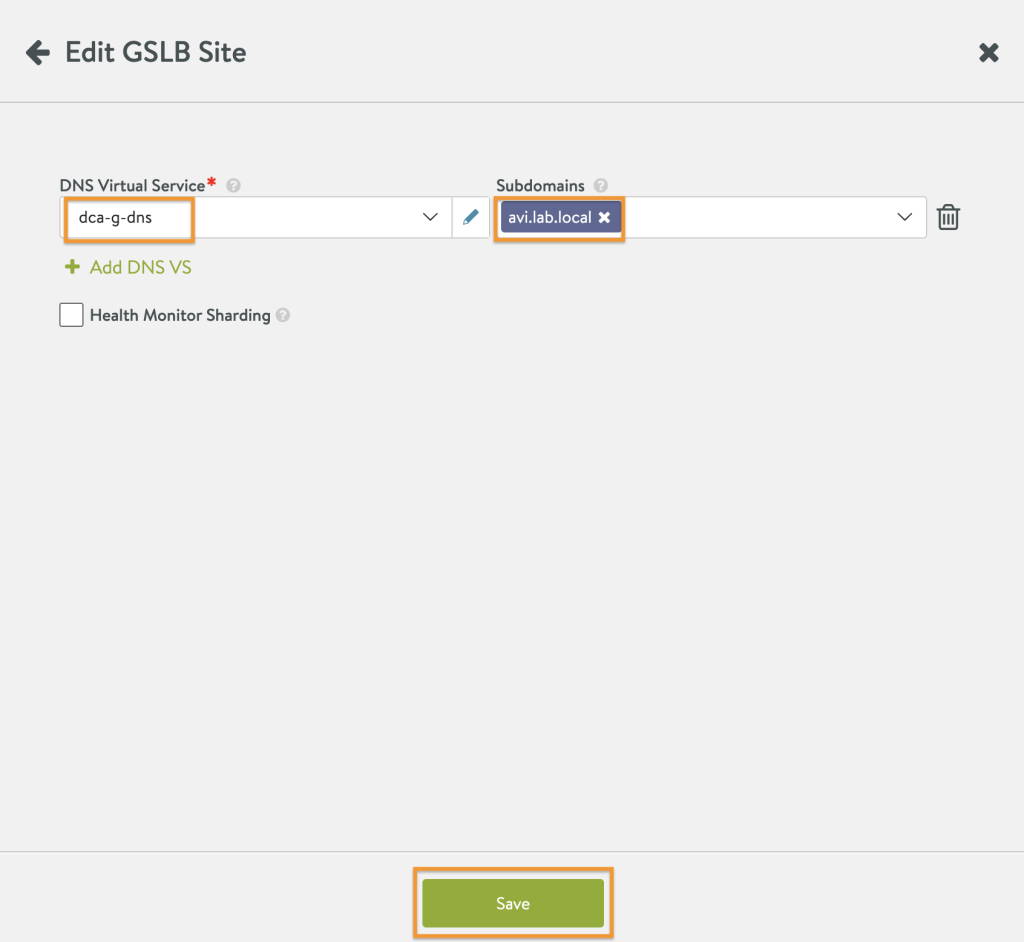

Select the DNS Virtual Service, and select the Subdomain. Click Save
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site03.png?resize=648%2C596&ssl=1)
DCB Configuration

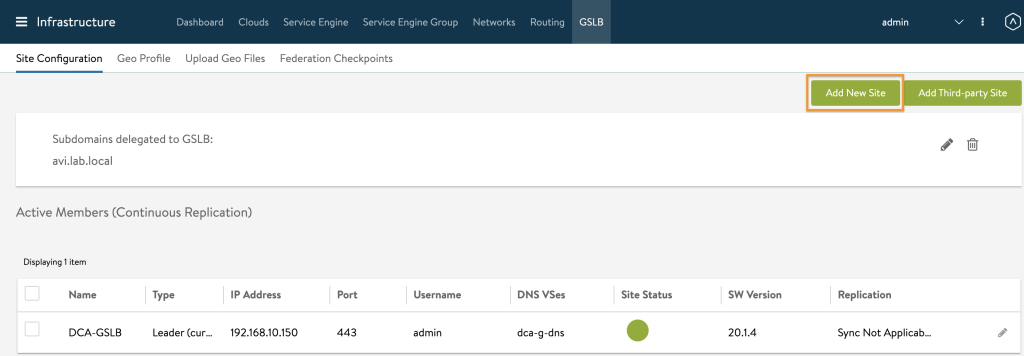

To configure DC B click Add New Site
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site04.png?resize=648%2C225&ssl=1)

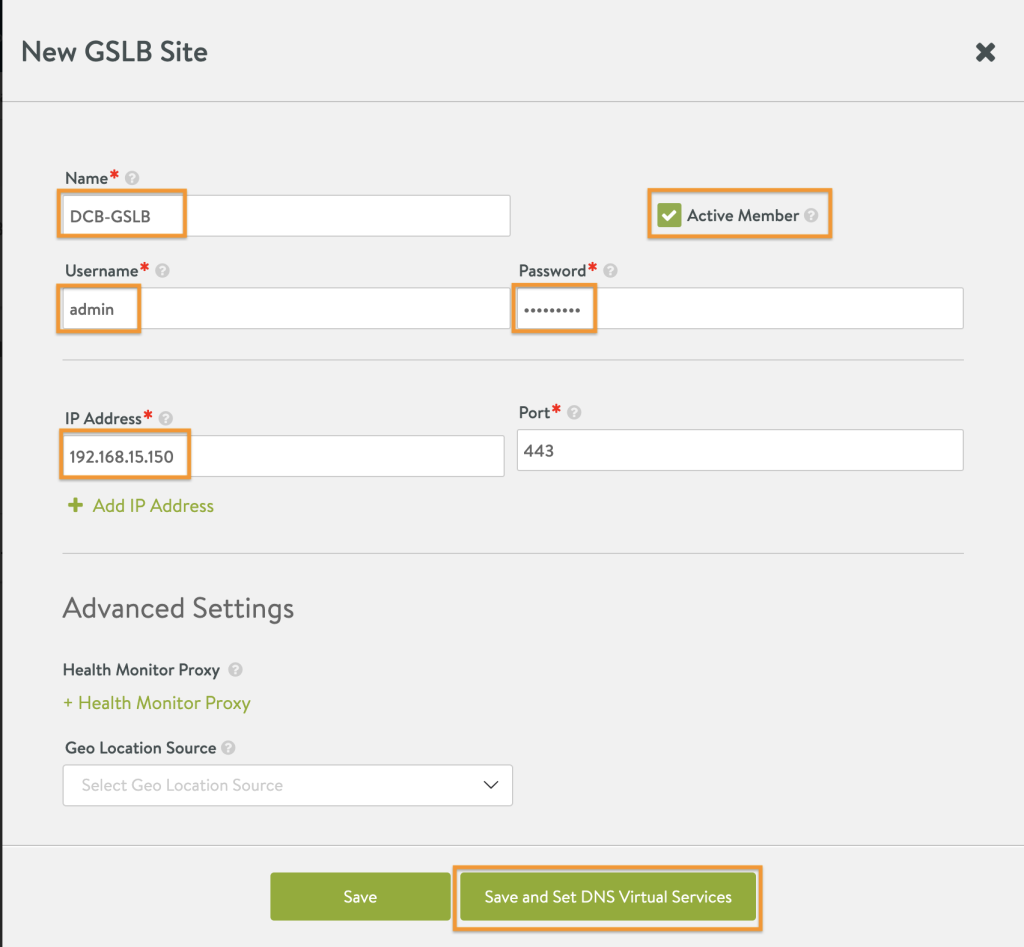

Enter a DC B site name, set the Username and Password Select Active Member, Enter the IP address of the DC B Avi Controller now click Save and Set DNS Virtual Services
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site05.png?resize=648%2C599&ssl=1)

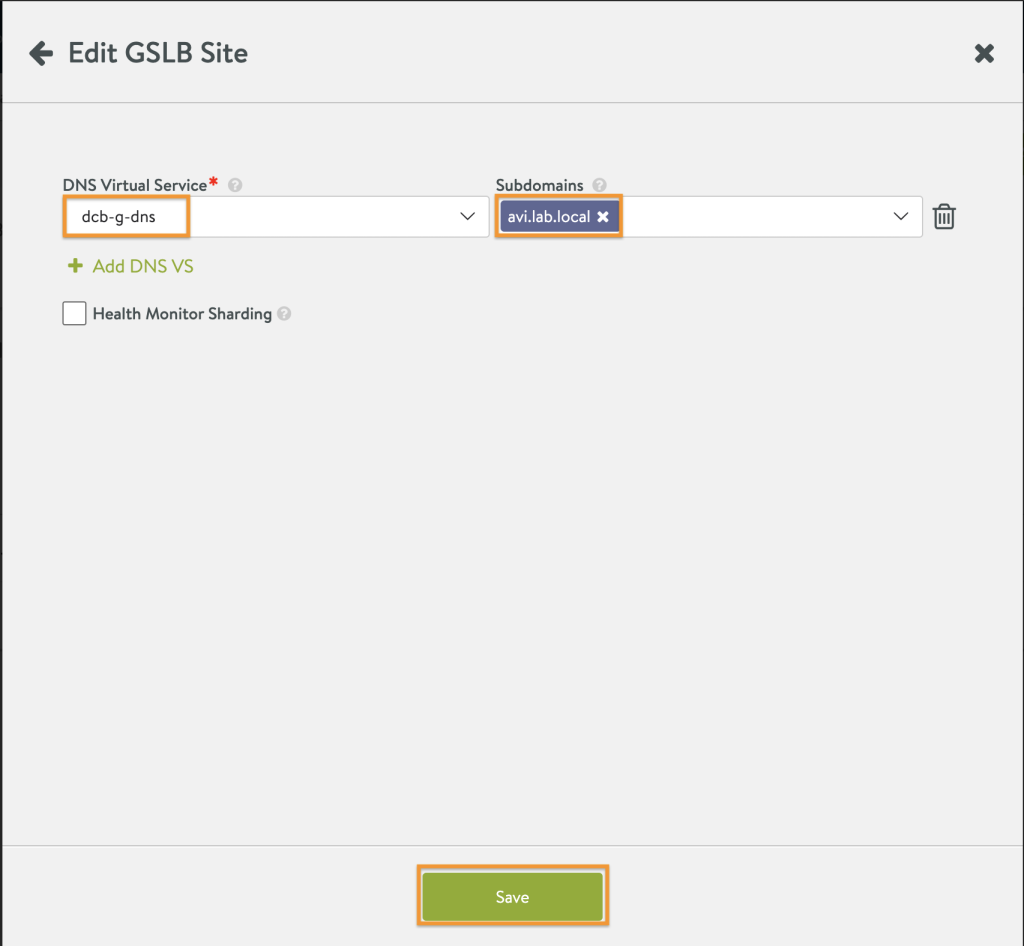

Select the DC B DNS Virtual Service, and select the Subdomain. Click Save
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site06.png?resize=648%2C599&ssl=1)

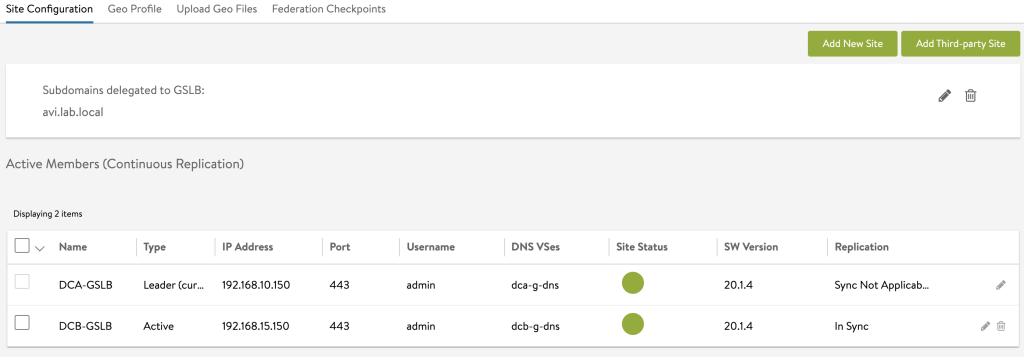

We end up with this.
![](https://i0.wp.com/vdives.com/wp-content/uploads/2021/06/GSLB-Site07.png?resize=648%2C226&ssl=1)
Now we have our site setup lets create our GSLB Service
